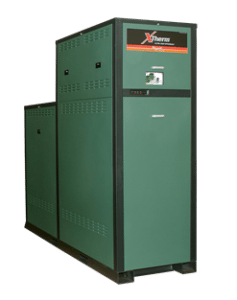

Raypak XTHERM ® Vertical Modulating Condensing Water Heater, 2505-4005

Raypak

Model: 2505-4005

The all-new XTherm - vertical modulating condensing heater in sizes to 4000 MBTU. XTherm combines time-honored high-recovery copper fin technology with cutting edge control and combustion advancements. The installer and building owner enjoy broad installation flexibility, easy commissioning, and long term reliability.

Category: Commercial Water Heaters

Rated 4.5/5 based on 11 customer reviews

Request More Information Or Quote

BASIC DATA

Model Number

Full Input in
(BTUH)

Flue cat IV Dia.

WH7-2505

2501,000

10″

WH7-3005

3,000,000

10″

WH7-3505

3,500,000

10″

WH7-4005

4,000,000

12″

Features:

97% efficiency. Condensing, Cat IV venting required
Brass headers with copper finned-tube primary heat exchanger. Cupro-nickel tubes available as options. CSA Low Lead Certified 5.25% lead
Minimum continuous inlet water temperature (50°F)
Electronic modulating gas valve and burner, up to 12.5:1 turndown
On-board diagnostic center, real English, no codes
All models indoor/outdoor construction
Complete cabinet protects all controls and wiring
Certified under BAA!MD rule 7 – LowNOx
Suitable for altitudes up to 10,000 ft. (derate above 5,000 ft.)
Primary-secondary piping required.
0-10 VDC Remote set-point BMS Interface
0-10 VDC Direct Drive
Available for natural gas or propane
VERSA IC® control package with built-in outdoor reset function. 7″ touchscreen display, including system sensor, indirect sensor & indirect supply sensor
Built-in cascade function for up to 4 heaters
Modbus® RTU port (RS485)

Options:

BACNet IP, BACnet MS/TP, Modbus TCP, N2 Metasys (B-85)
Lonworks (B-86)
Alarm with 4” Bell (E-5)
Low Water Cutoff (F-10)
Condensate Neutralizer (Z-12)
