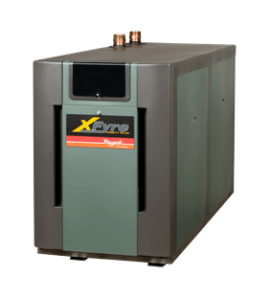

Raypak XFYRE® Condensing Water Heater, 300A-850A

BASIC DATA

Features:

• 95% efficiency.  Condensing, Cat IV venting required.
• All models Indoor/Outdoor construction.
• Small footprint, less than 9-1/2 square feet.
• Top side water connections – allows side by side installation.
• All models are equipped with 316L welded stainless steel heat exchanger and copper plumbing. ASME Section IV constructed and stamped. National Board Registered.
• CSA low lead certified less than 0.25% lead.
• Multiple pump outputs – Heater Pump, System Pump.
• Electronic modulating gas valve and burner, up to 5:1 turn down.
• Certified under SCAQMD Rule 1146.2.  Meets all Low NOx regulations.
• Whisper quiet operation.
• Support inlet water temperature down to 50F.
• On-board diagnostic center, English, no codes.
• 0-10 VDC BMS Interface (setpoint or direct drive).
• Built-in cascade function for up to 4 boilers.
• VERSA IC® control package.
• Complete cabinet protects all controls and wiring.
• Tough rust-resistant powder coat finish.
• Easy to service – removable air filter.
• Certified for PVC, CPVC, Polypropylene or stainless vent materials.
• Suitable for altitudes up to 10,000 ft. (derate may apply).
• Available for natural gas or propane.
• Modbus® BMS port (RS485).

Options:

• TruSeal® direct vent kit (D-21 factory installed, D-22 Loose).
• Condensate neutralizer (Z-12).
• BACNet IP, BACnet MS/TP, Modbus TCP, N2 Metasys (B-85)
• Lonworks (B-86)
