Raypak HI DELTA FlexGas® Water Heater, 992CD-2342CD

Raypak

Model: 992CD-2342CD

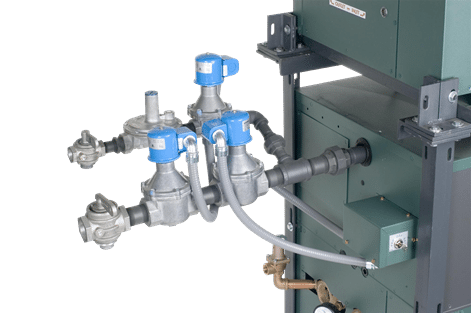

Although it is possible to convert almost any Hi Delta® unit from natural gas to propane, it does take some time. The patented "FlexGas®" system allows the unit to be plumbed to BOTH fuels, switching from operation on one fuel to the other with the turn of a key - without shutting down the unit at all!

Category: Commercial Water Heaters

Rated 4.5/5 based on 11 customer reviews

Request More Information Or Quote

BASIC DATA

Model	Full Input in BTUH	Flue Dia.	# of Stages
WH8-992CD	990,000	10″	3
WH9-1262CD	1,260,000	12″	4
WH9-1532CD	1,530,000	12″	4
WH9-1802CD	1,800,000	14″	4
WH9-2002CD	1,999,000	14″	4
WH9-2072CD	2,070,000	14″	4
WH9-2342CD	2,340,000	16″	4

Features:

All models Indoor/Outdoor certified.
85% Efficiency.
CAT I vertical venting, CAT III sidewall venting. No extractor needed for up to 70ft on room air.
Patented burner “security blanket” enhances staged combustion, minimizes installation/start-up issues, and protects burners from metal fatigue.
105ºF minimum inlet water temperature.
Cast-iron headers with copper finned tube heat exchanger standard. Brass headers and cupro-nickel tubes available as options. AB 1953 compliant.
Ducted combustion air ready. TruSeal® CSA-Certified direct-vent available.
Status display and on-board diagnostic center, English, no codes.
Certified under SCAQMD Rule 1146.2. Meets all Low NOx regulations.
