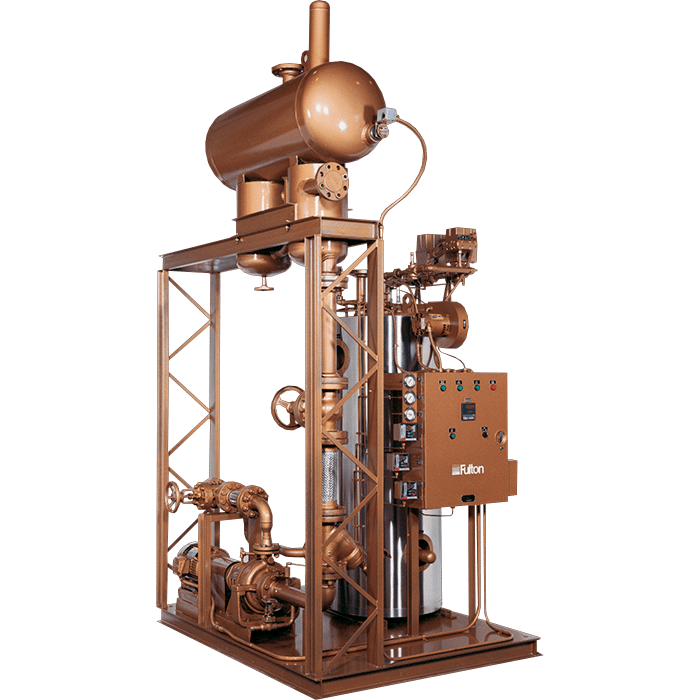

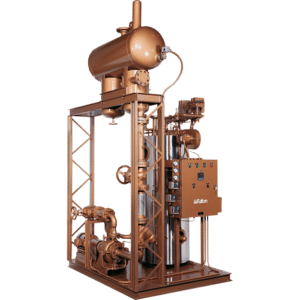

Fulton Vertical Tubeless Thermal Fluid (hot oil) Heater

Fulton

Model: FT-A

Gas, Oil or Low Emissions Gas Burners Available
Customized Controls

Fulton's vertical tubeless fuel fired thermal fluid (hot oil) heater features a compact footprint for your thermal fluid heating application. It provides outputs from 207,000 BTU/hr to 1,740,000 BTU/hr and operating temperatures to 600°F (315°C).

Category: Commercial Thermal Fluid Heaters

Rated 5/5 based on 4 customer reviews

Request More Information Or Quote

KEY FEATURES

Vertical Annular Design
Heaters are Built and Tested to ASME Code
Section VIII Div. I as standard. ASME Code
Section I is available upon request
207,000 BTU/Hr to 1,736,000 BTU/Hr Output
Operating Temperatures to 600° F
Gas or Oil Fired Burners, On/Off or Modulating
Low Emission Gas Burners are Available
Customized Controls Available
Customized Heaters Available

MODELS FT-A	200	380	520	690	1050	1740
Specifications
Heat Output 1,000 BTU/HR	207	348	519	693	1,052	1,736
1,000 KCAL/HR	52	88	131	175	265	437
Thermal Fluid Content Gallons	23	38	45	65	98	117
Liters	87	144	170	246	371	443
Recommended Flow Rate GPM	90	90	125	125	150	200
M3/HR	21	21	28	28	34	46
Approximate Fuel Usage • Light Oil GPH	2.2	3.2	4.7	6.7	9.4	15.8
LPH	8.3	11.9	17.8	25.4	35.6	60
Approximate Fuel Usage • Natural Gas FT3/HR	259	435	649	866	1,315	2,170
M3/HR	7.2	12.2	18.4	24.2	36.8	60.8
Power
Typical Circulating Pump HP	10	10	15	15	15	20
KW	7.5	7.5	11.2	11.2	11.2	14.9
Typical Burner Motor HP	0.33	0.33	0.33	0.75	0.75	1.5
KW	0.248	0.248	0.248	0.56	0.56	1.1
