JP Trading Inc.>Commercial Boilers>Thermal Fluid Heaters>Fulton Vertical Electric Thermal Fluid (hot oil) Heater
  • Vertical Electric Thermal Fluid (hot oil) Heater

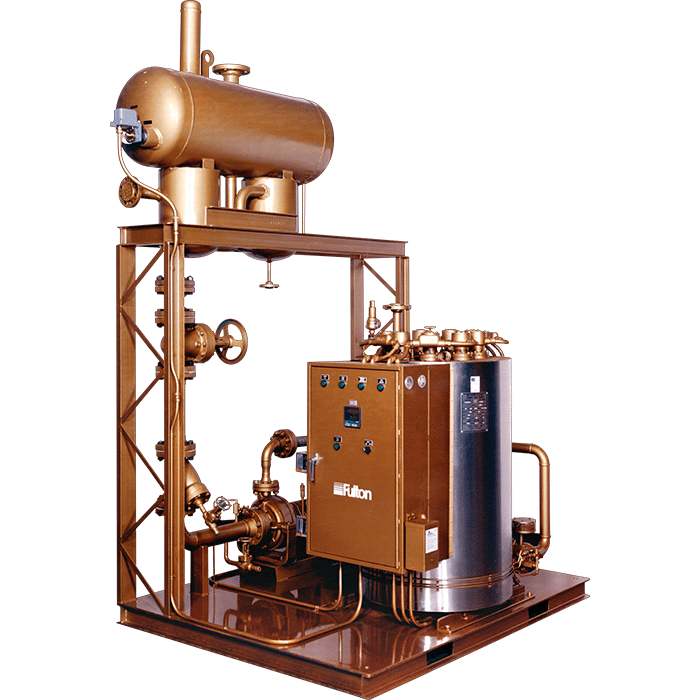

Fulton Vertical Electric Thermal Fluid (hot oil) Heater

Fulton

Model: FT-N

  • Low Watt Density Elements Result in Low Film Temperatures and Long Element Life
  • Customized Controls Available, Including Class I, Div. I or Class I, Div. 2 Groups C&D of NEC code
  • Customized Heaters Available

Fulton's vertical electric thermal fluid (hot oil) heater provides an electric heating source for explosion-proof applications of high temperature loads. It features top-mounted multiple low watt density elements. Heaters are available with operating temperatures to 650°F (340°C) and outputs from 75,000 BTU/hr to 1,720,000 BTU/hr.

Category: Commercial Thermal Fluid Heaters

Rated 4.5/5 based on 11 customer reviews

Request More Information Or Quote

KEY FEATURES

  • Compact Vertical Design
  • Heaters are Built and Tested to ASME Code Section VIII Div. I as standard. ASME Code Section I is available upon request
  • 74,000 BTU/Hr to 1,685,000 BTU/Hr Output
  • Operating Temperatures to 650° F
  • Low Watt Density Elements Result in Low Film Temperatures and Long Element Life
  • Customized Controls Available, Including (but not limited to) Class 1, Division 1 or 2 groups C&D of NEC Code
  • Customized Heaters Available
MODELS FT-N 75 150 225 300 375 430 640 860 1070 1290 1500 1720
Specifications
KW 22 44 66 88 110 126 189 252 315 378 441 504
Heat Input 1,000 BTU/HR 75 150 225 300 375 429 644 859 1,074 1,289 1,504 1,719
1,000 KCAL/HR 19 38 57 76 95 108 162 216 271 325 379 433
Heat Output 1,000 BTU/HR 74 148 222 294 368 420 631 842 1,053 1,263 1,474 1,685
1,000 KCAL/HR 18.6 37.3 59.9 74.1 92.7 105.8 159 212.2 265.4 318.3 371.4 424.6
Thermal Fluid Content Gallons 18 36 42 54 63 79 79 102 127 152 168 185
Liters 68 136 159 204 238 299 299 386 480 575 636 700
Recommended Flow Rate GPM 50 50 50 90 90 125 125 150 150 175 200 200
M3/HR 11.4 11.4 11.4 20.5 20.5 28.4 28.4 34 34 39.8 45.5 45.5
Power
Typical Circulating Pump Motor HP 7.5 7.5 7.5 10 10 15 15 15 15 15 20 20
KW 6 6 6 8 8 11 11 11 11 11 14.9 14.9
Amps 208V 61 122 183 245 306 350 525 700 875 1,050 1,224 1,399
220V 53 106 159 212 265 303 455 607 758 910 1,061 1,212
480V 26 53 79 106 132 151 228 303 379 455 531 606
