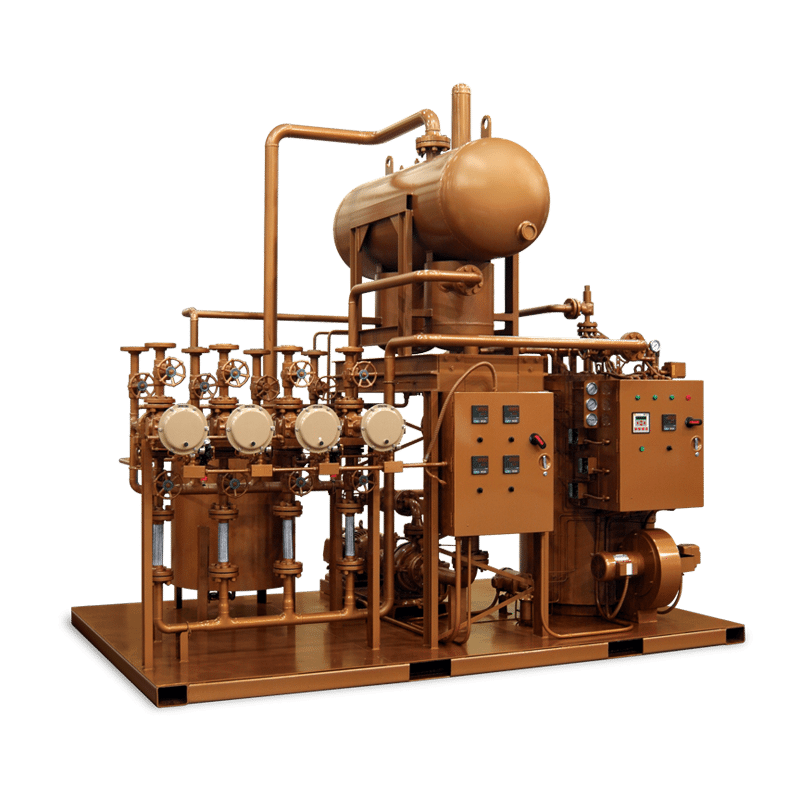

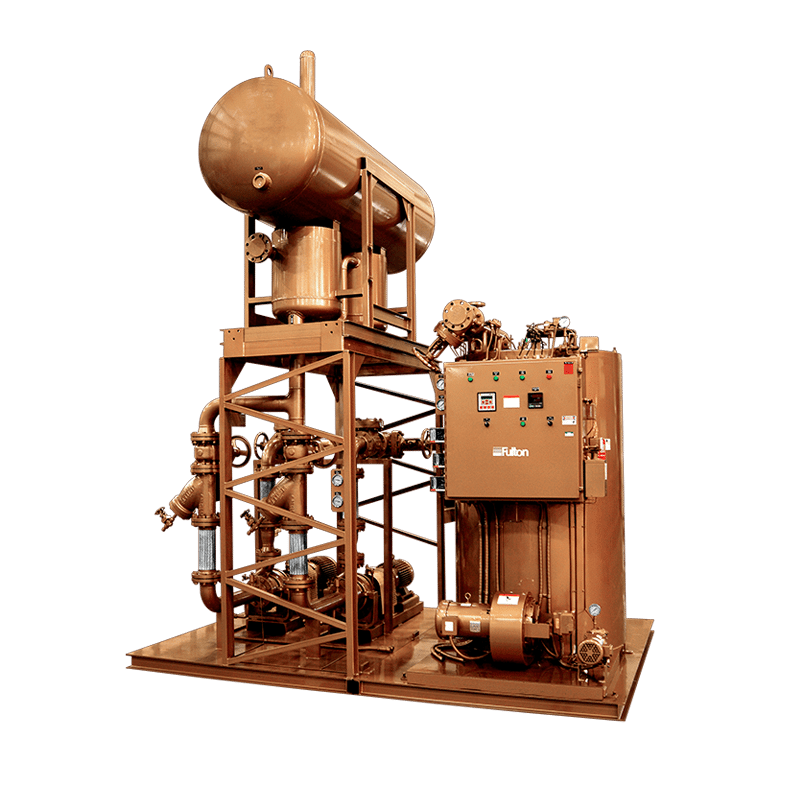

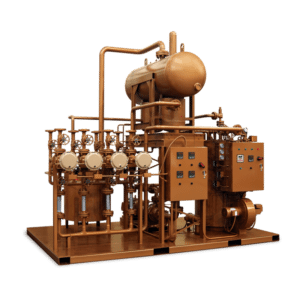

Fulton Vertical Coil Thermal Fluid (hot oil) Heater

Fulton

Model: FT-C

  • Modulating Gas, Oil, Dual Fuel and Low Emissions Gas Burners are Available
  • Customized Designs and Controls Available
  • Minimal Floor Space Required

Fulton's vertical coil design thermal fluid (hot oil) heater offers a compact, fuel-fired 4-pass heater design capable of operating temperatures to 750°F (400°C) with heater sizes from 800,000 BTU/hr to 14,000,000 BTU/hr output. The heater is designed to allow for high fluid velocities and low film temperatures, which translates into system longevity. Fulton offers several burner and control options to best meet your application needs.

Category: Commercial Thermal Fluid Heaters

Rated 4.5/5 based on 11 customer reviews

Request More Information Or Quote

KEY FEATURES

  • Vertical 4-Pass Design
  • Preheated Combustion Air is an Integral Part of the Design
  • Heaters are Built and Tested to ASME Code Section VIII Div. I as standard. ASME Code Section I is available upon request
  • 800,000 BTU/Hr to 14,000,000 BTU/Hr Output
  • Operating Temperatures to 750° F
  • Gas, Oil or Dual Fuel Burners; On/Off or Modulating
  • Low Emission Natural Gas Burners are Available
  • Minimal Refractory Results in Low Thermal Inertia and Prevents Overheating of the Fluid in the Event of a Pump or Power Failure
  • Customized Controls Available
  • Customized Heaters Available
  • High Efficiencies
  • Even Heating
MODELS FT-C 80 120 160 240 320 400 600 800 1000 1200 1400
Specifications
Heat Output 1,000 BTU/HR 800 1,200 1,600 2,400 3,200 4,000 6,000 8,000 10,000 12,000 14,000
1,000 KCAL/HR 200 300 400 600 800 1,000 1,500 2,000 2,500 3,000 3,500
Thermal Fluid Content Gallons 10 21 19 31 68 76 132 201 290 383 460
Liters 38 80 72 116 258 288 498 648 1,097 1,448 1,741
Recommended Flow Rate GPM 50 75 100 150 250 250 375 500 615 730 800
M3/HR 11.4 17 22.7 34 56.8 56.8 85.2 113.6 139 167 182
Approximate Fuel Usage
Light Oil * GPH 7.1 10.7 14.3 21.4 28 35.3 53 69.3 87.1 104.5 122
LPH 27 40.6 54.1 81 108.8 136 201 263.7 329.6 395.5 461.5
Natural Gas * FT3/HR 998 1,498 1,998 2,999 4,000 4,997 7,498 9,997 12,496 14,998 17,500
M3/HR 38.3 42.4 56.5 84.9 113.2 141.5 212.3 283 353.8 424.6 495.5
Power
Typical Circulating Pump HP 10 10 15 15 20 20 30 40 50 50 60
KW 7.5 7.5 11.2 11.2 14.9 14.9 22.5 29.5 37.3 37.3 45
Typical Burner Motor HP 1.5 3 3 3 5 7.5 7.5 15 20 20 20
KW 1.1 2.2 2.2 2.2 3.7 5.6 5.6 11.2 11.2 15 15
