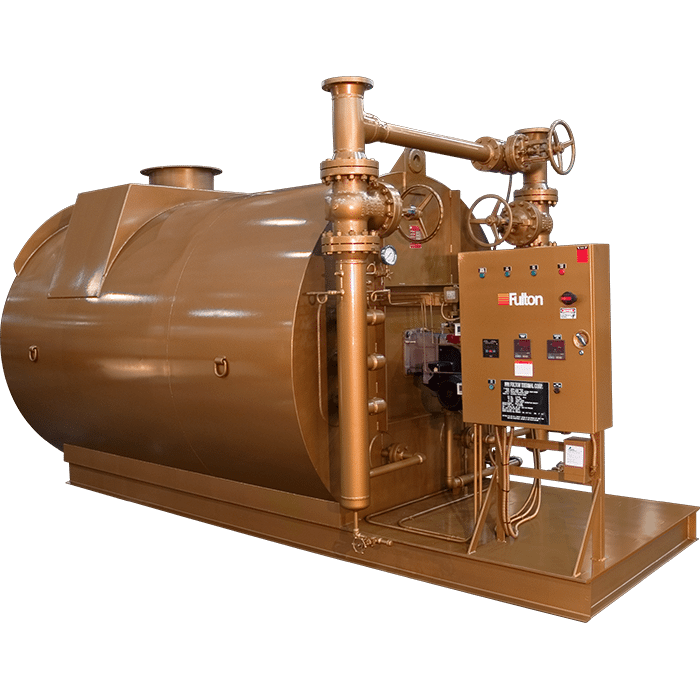

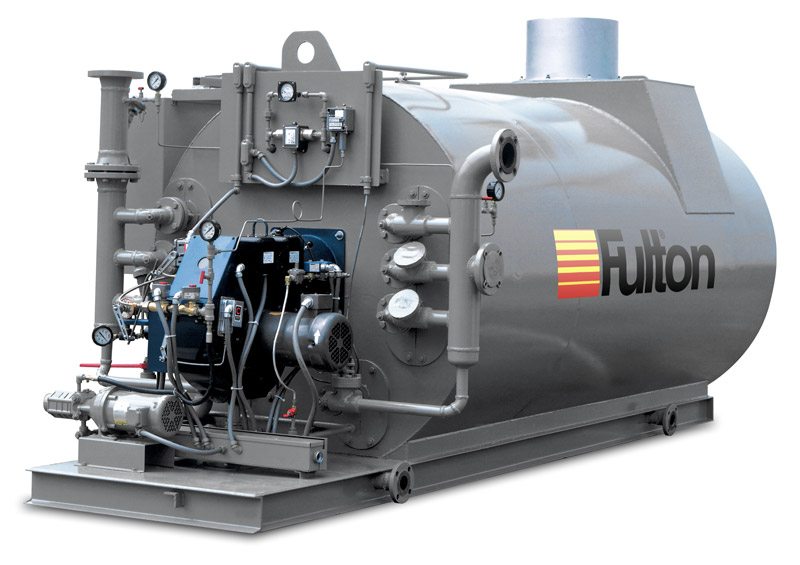

Fulton Alliance 3-Pass Horizontal Thermal Fluid (hot oil) Heater

Fulton

Model: HC

3 Pass Design
Gas, Oil or Low Emissions Gas Burners Available
Customized Controls

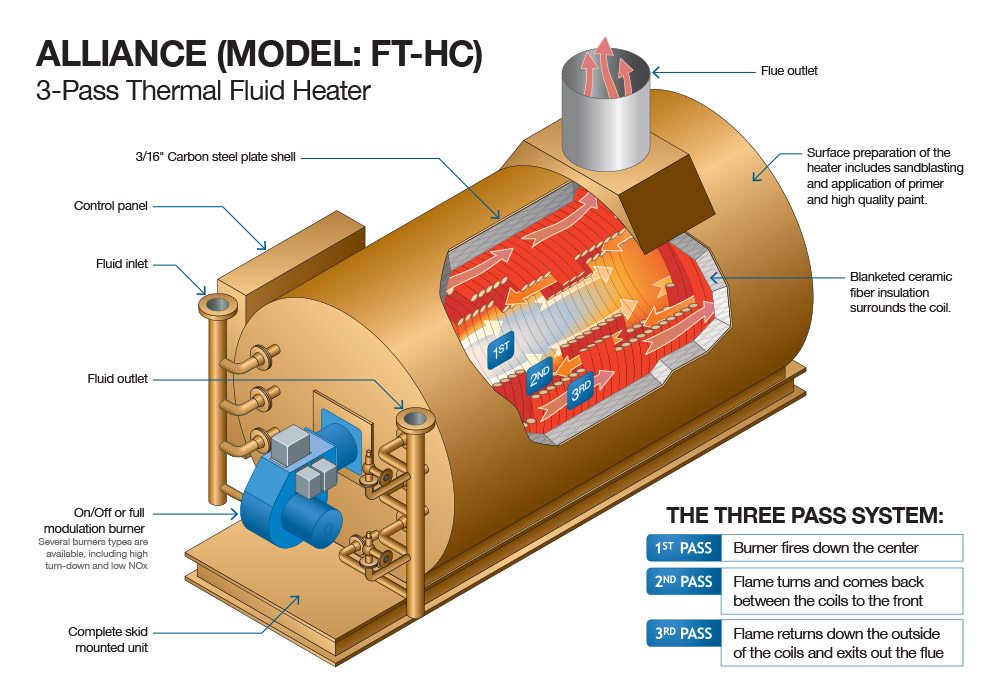

Fulton's horizontal coil thermal fluid (hot oil) heater features a 3-pass, multi-pipe design for high fluid velocities and low film temperatures. The heaters are available from 2,400,000 BTU/hr to 20,000,000 BTU/hr output and maximum operating temperatures to 650°F (340°C).

Category: Commercial Thermal Fluid Heaters

Rated 4.5/5 based on 11 customer reviews

Request More Information Or Quote

KEY FEATURES

Compact Horizontal 3-Pass Design
2,400,000 BTU/Hr to 20,000,000 BTU/Hr Output
Heaters are Built and Tested to ASME Code Section VIII Div. I as standard. ASME Code Section I is available upon request.
Operating Temperatures to 650° F
Modulating Gas, Oil or Dual Fuel Burners
Low Emission Gas Burners
Alternative Fuel Capabilities
Open Protocol Burner
Skid Mounted Systems Available, Including Circulating Pump and Expansion Tank
Customized Controls and Heaters Available

MODELS HC	240	400	600	800	1000	1200	1600	2000
Specifications
Heat Output 1,000 BTU/HR	2,400	4,000	6,000	8,000	10,000	12,000	16,000	20,000
1,000 KCAL/HR	600	1,000	1,500	2,000	2,500	3,000	4,032	5,040
Thermal Fluid Content Gallons	75	115	190	264	325	508	480	1,150
Liters	284	435	719	998	1,230	1,921	1,817	4,353
Recommended Flow Rate GPM	150	300	400	600	850	1,000	1,200	1,500
M3/HR	35	69	91	137	193	227	273	341
Approximate Fuel Usage
Light Oil GPH	23	39	58	77	96	115	143	179
LPH	88	148	220	292	364	436	542	678
Natural Gas FT3/HR	3,200	5,340	8,000	10,700	13,340	16,000	20,000	25,000
M3/HR	91	152	227	304	378	454	566	708
Power
Typical Circulating Pump Motor HP	15	25	30	50	60	75	100	125
KW	11.2	18.7	22.5	37.3	45	56	74.5	93.2
Typical Burner Motor HP	2	5	7.5	10	15	15	30	30
KW	1.5	3.7	5.6	7.5	11.2	11.2	22.4	22.4
