FEATURES:
- Nearly 100% efficient
- Quiet, clean
- No emissions
- Small footprint – compact design
- Built/Certified to ASME, CSD-1, UL Packaged Boiler
- Ideal choice where fossil fuels are not available or where electricity rates are favorable
- Completely wired control panel box located in front of the boiler
- Safe, solid state relays, all wiring meets NEC specifications
EFFICIENT, QUIET, SAFE OPERATION

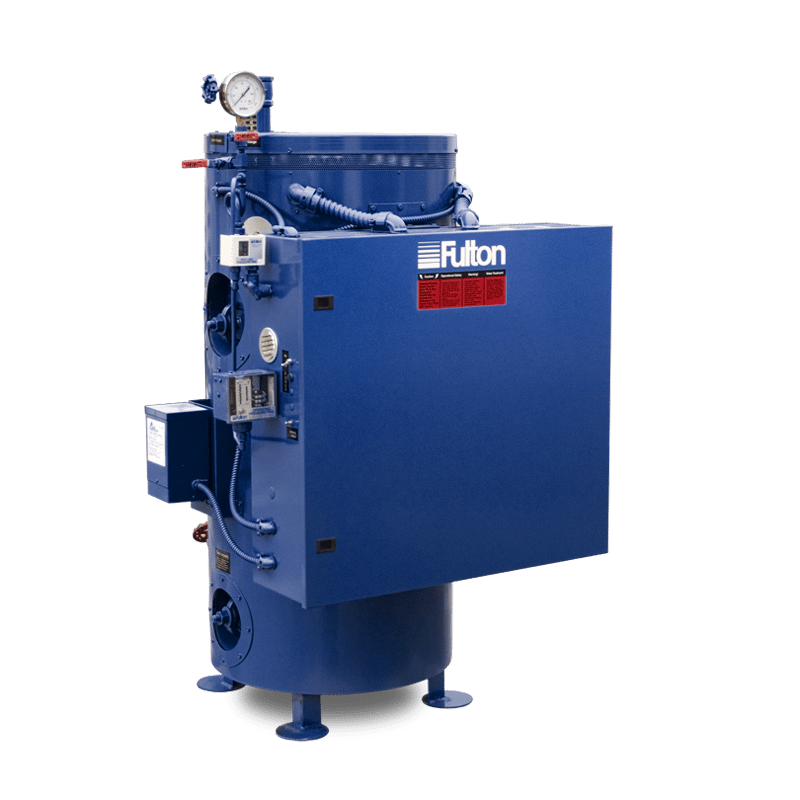

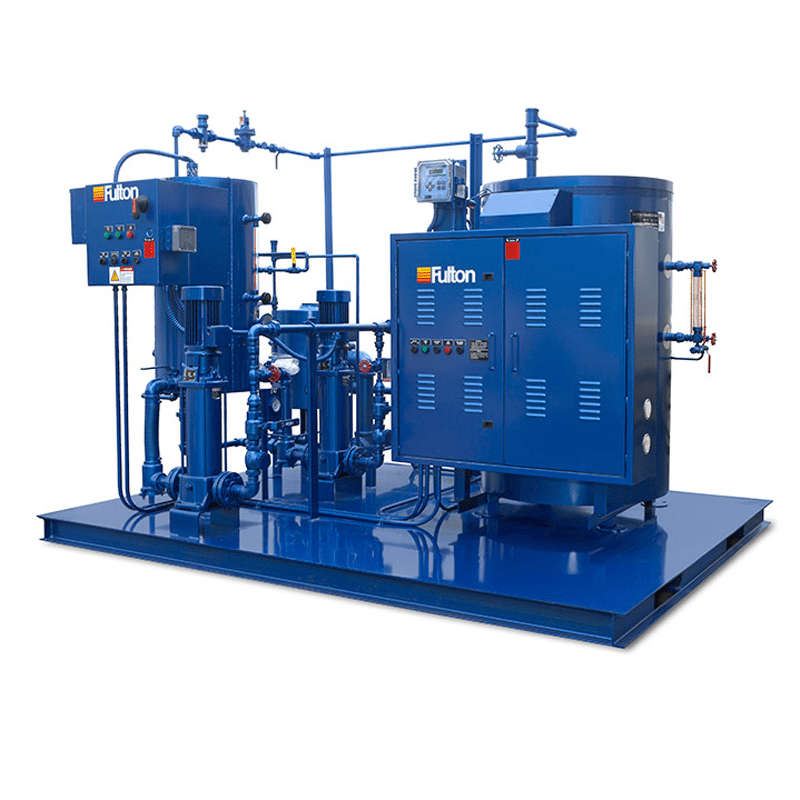

Fulton manufactures a complete line of electric steam and hot water boilers from 12 kW to 1,000 kW (1.2 to 100 BHP) up to 300 PSI for heating and process applications. Custom units are also available up to 800 PSI.
Fulton’s vertical design is a fully packaged steam boiler built to ASME specifications and applicable standards and codes. They are very efficient because the heating elements are totally immersed in water and the pressure vessel is fully insulated. Radiation losses are minimal. With a carefully calculated heat-to-steam ratio, operating pressures are achieved quickly with maximum efficiency. Electric boilers have no wasted fuel going out the stack as associated with fossil fuels; therefore, electric boilers are environmentally friendly. No NOx (nitrogen oxides) are being transmitted to the atmosphere.
STAINLESS STEEL HEATING ELEMENTS
Fulton uses low watt density elements made of stainless steel. Stainless will not melt or anneal as easily as copper elements which ensures a long life expectancy. The small 12 to 36 kW boilers use horizontally mounted elements near the bottom of the boiler while the 50 to 1,000 kW elements mount vertically. Fulton also offers optional Incoloy elements which remain stable during extended exposure to high temperatures and offer an increased resistance to stress corrosion.
ROBUST MANUFACTURING
Intelligent designs maximize boiler pressure vessel integrity and increase life expectancy. Our construction parameters typically include material thicknesses 30% greater than ASME minimum requirements. Stainless units are available for RO/DI water or Clean Steam applications.
EASILY INSPECTED AND MAINTAINED
The elements in each of the models are easily accessible and permit quick removal for service or inspection by simply unbolting the element(s) from the flanges in the top or side of the boiler. Expansion and contraction of the elements cause scale to flake off and drop to the bottom of the boiler. Strategically located 3” x 4” handholes allow easy inspection and periodic clean out maintenance.
CRAFTSMANSHIP
All Fulton boilers are hand-built by skilled craftsmen. The impressive workmanship that goes into constructing the pressure vessels is performed by Fulton’s ASME certified welders, who average over 20 years of experience.
