JP Trading Inc.>Commercial Boilers>Steam Boilers>Fulton Edge Vertical Tubeless Boiler

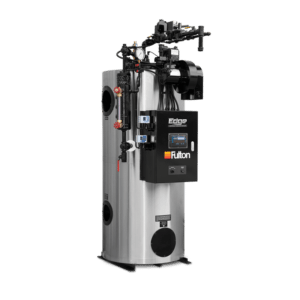

Fulton Edge Vertical Tubeless Boiler

Fulton

Model: ICX OR FB-F

  • Efficiencies up to 84%
  • Small Footprint - Compact Design
  • Flue Gas Enhancing System

The Edge™ takes Fulton's Classic boiler one step further with an engineered Flue Gas Enhancing (FGE) system for increased efficiencies. With all the tried-and-true features of our best-selling Classic, the Edge increases efficiencies up to 84% using a grid of heat convection fins over which high-velocity flue gases travel. The fins radiate additional heat evenly to the outer side of the water vessel, increasing your boiler's efficiency while still maintaining the longevity of the pressure vessel.

Category: Commercial Steam Boilers

Rated 4.3/5 based on 21 customer reviews

Request More Information Or Quote

Edge 6 -30 BHP
Type: Steam or Hot Water Boiler
Size Range: 6, 9.5, 10, 15, 20, 30 BHP
Primary Application: Laundries, Drycleaners, Industrial / Commercial
Burner Available: Gas fired only * Low emissions burner optional
Design Pressure Range: Standard: 15, 150 psig Custom: Up to 500 psig
 Efficiency: Up to 84 %



FEATURES:

  1. Same vertical tubeless 2-pass design as our Classic boiler
  2. Additional Flue Gas Enhancing System to maximize efficiency
  3. Top mounted burner for even heat distribution
  4. Small footprint – compact design
  5. Built/Certified to ASME, CSD-1 and other applicable codes, UL Packaged Boiler
  6. All hand-welded pressure vessel
  7. Stainless steel jacket

DURABLE AND RELIABLE CONSTRUCTION



All of the time-proven benefits and design features of the Classic Vertical Tubeless Boiler have been maintained in the Edge, but with the added value of the Fulton Engineered Flue Gas Enhancing System (FGE) to cut your fuel bills substantially.

Using added heat transfer surface area, the high-velocity flue gases travel over a cylindrical grid of heat convection fins, transferring additional heat evenly to the water in the vessel. This creates increased efficiency up to 84% while still maintaining a rugged pressure vessel design.

LOW EMISSIONS BURNER

An available option is Fulton’s low emissions burner. Our Research & Development team has developed burners for each model to meet or exceed the most stringent emissions requirements. This option is available on the Classic, Edge, and VMP models.
